Permanent Magnet Stepper Linear Motor 57BYGHL Step Angle Stepper Motor Two Phase

Name: Permanent Magnet Stepper Linear Motor 57BYGHL Step Angle Stepper Motor Two Phase
Brand: XM-Motor
Price: 1 USD

Brand Name : XM-Motor

Model Number : 57BYGHL

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10000PCS

Price : 1~10 USD/PC

Payment Terms : D/P,L/C,T/T

Supply Ability : 100000pcs/month

Delivery Time : 35DAYS

Packaging Details : CTN OR CUSTOMIZED

Name : Stepper Linear Motor

Material : black or customized

size : Standard

packing : CTN or customized

motor : stepper motor

phase : 2~4

stepper motor : 4 wire stepper motor

high torque : small stepper motor high torque

Construction : PM

Contact Now

Stepper Linear Motor 57BYGHL Step Angle Accuracy Step Accuracy Accuracy Value ± 5% Temperature Rise Temperature Rise Maximum Value 80 ℃ Max. Insulation Resistance Insulation Resistance

57BYGHL Product Technical Parameters

Product Parameter	English Description
Step Angle Accuracy	Step Accuracy
Accuracy Value	± 5%
Temperature Rise	Temperature Rise
Maximum Value	80 ℃ Max.
Insulation Resistance	Insulation Resistance
Minimum Value & Test Voltage	100MΩ Min. 500 VDC
Ambient Temperature	Ambient Temperature
Temperature Range	-20℃~+50℃
Dielectric Strength	Dielectric Strength
Test Condition	500VAC 1 minute
Maximum Radial Load	Max Radial Force
Load Value & Test Position	75N (20mm from front flange)
Maximum Axial Load	Max Axial Force
Load Value	15N

Motor Technical Data

Model	Step Angle (°/Step)	Number of Leads (NO.)	Voltage (V)	Current (A/Phase)	Resistance (Ω/Phase)	Inductance (mH/Phase)	Holding Torque (kg.cm)	Body Height (mm)	Weight (kg)
57BYGHL013-15	1.8	4	2.7	1.5	1.8	4.0	4.0	41	0.45
57BYGHL216-10	1.8	4	3.3	1.7	1.95	6.0	10.0	51	0.65
57BYGHL401-03	1.8	4	6.0	0.6	10.0	32.0	9.0	56	0.70
57BYGHL602-07	1.8	4	10.4	0.8	13.0	42.0	19.8	78	1.00
57BYGHL815-01	1.8	4	7.36	1.6	4.6	16.0	20.0	84	1.13

*The above are only representative products, and derivative products can be customized according to customer requirements.

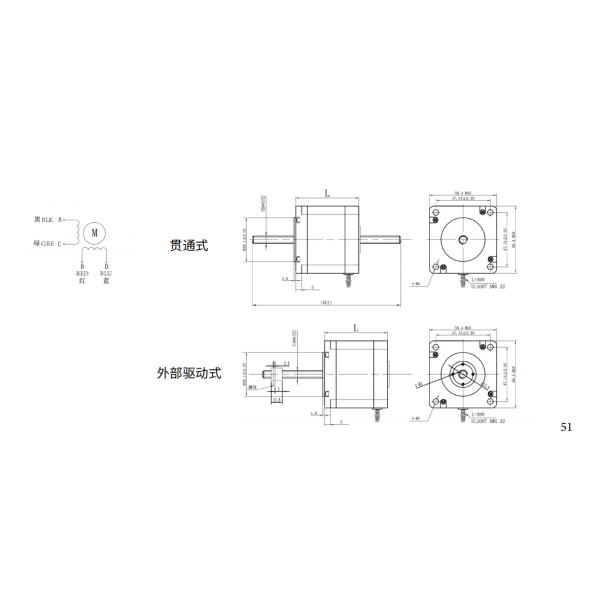

Wiring Diagram and External View Drawing

Permanent Magnet Stepper Linear Motor 57BYGHL Step Angle Stepper Motor Two Phase
