Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire

Name: Step Angle 18 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire
Brand: XM-Motor
Price: 1 USD

Quality Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire for sale

Brand Name : XM-Motor

Model Number : 1.8° 28HS hybrid stepper motor

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10000

Price : 1~10 USD/PC

Payment Terms : L/C,D/P,T/T

Supply Ability : 100000PCS/month

Delivery Time : 35days

Packaging Details : CTN OR CUSTOMIZED

Name : 1.8 Degree Stepper Motor 2 Phase

Material : black or customized

size : standard

Ambient Temperature : -20℃~+50℃

Insulation Resistance : 100 MΩ Min. ,500VDC

Dielectric Strength : 500VAC for 1minute

Temperature Rise : 80℃max

packing : CTN or customized

Shaft Radial Play : 0.02Max. (450g-load)

Shaft Axial Play : 0.08Max. (450g-load)

motor : stepper motor

phase : 2~4

stepper motor : 4 wire stepper motor

high torque : small stepper motor high torque

Construction : PM

Contact Now

Hybrid Stepping Motor 1.8° 28HS Hybrid Stepper Motor (Step Angle) 1.8° Shaft Radial Play) 0.02Max. (450g-Load)

1.8° 28HS hybrid stepper motor

Product Overview

(Item)	(Specifications)
Step Angle)	1.8°
(Temperature Rise)	80℃max
(Ambient Temperature)	-20℃~+50℃
(Insulation Resistance)	100 MΩ Min. ,500VDC
(Dielectric Strength):	500VAC for 1minute
(Shaft Radial Play)	0.02Max. (450g-load)
(Shaft Axial Play)	0.08Max. (450g-load)
(Max. radial force)	28N (20mm from the flange)
(Max. axial force)	10N

Motor Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	Kg
28HS32-0956	1.8	32	0.95	2.8	0.8	430	6	9	0.11
28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
28HS45-0956	1.8	45	0.95	3.4	1.2	750	6	12	0.14
28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
28HS51-0956	1.8	51	0.95	4.6	1.8	900	6	18	0.2
28HS51-0674	1.8	51	0.67	9.2	7.2	1200	4	18	0.2

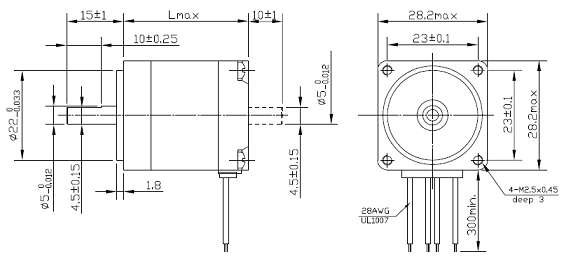

Motor Outline Drawing

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire

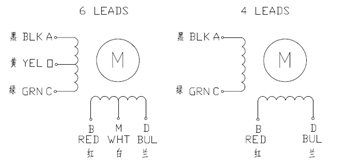

Motor Wiring Diagram

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire

Product Tags:

1.8 Degree Stepper Motor 2 Phase

4 Phase Stepper Motor 4 Wire

4 Phase Stepper Motor 1.8 Degree

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire Images
